Code Blue

•

259 Hedcor Street

•

Holland, MI 49423 USA

•

800.205.7186

•

www.codeblue.com

GU-149-Bpage 21 of 33

CB 2 Series

Administrator Guide

CB 2-s Installation Instructions (continued)

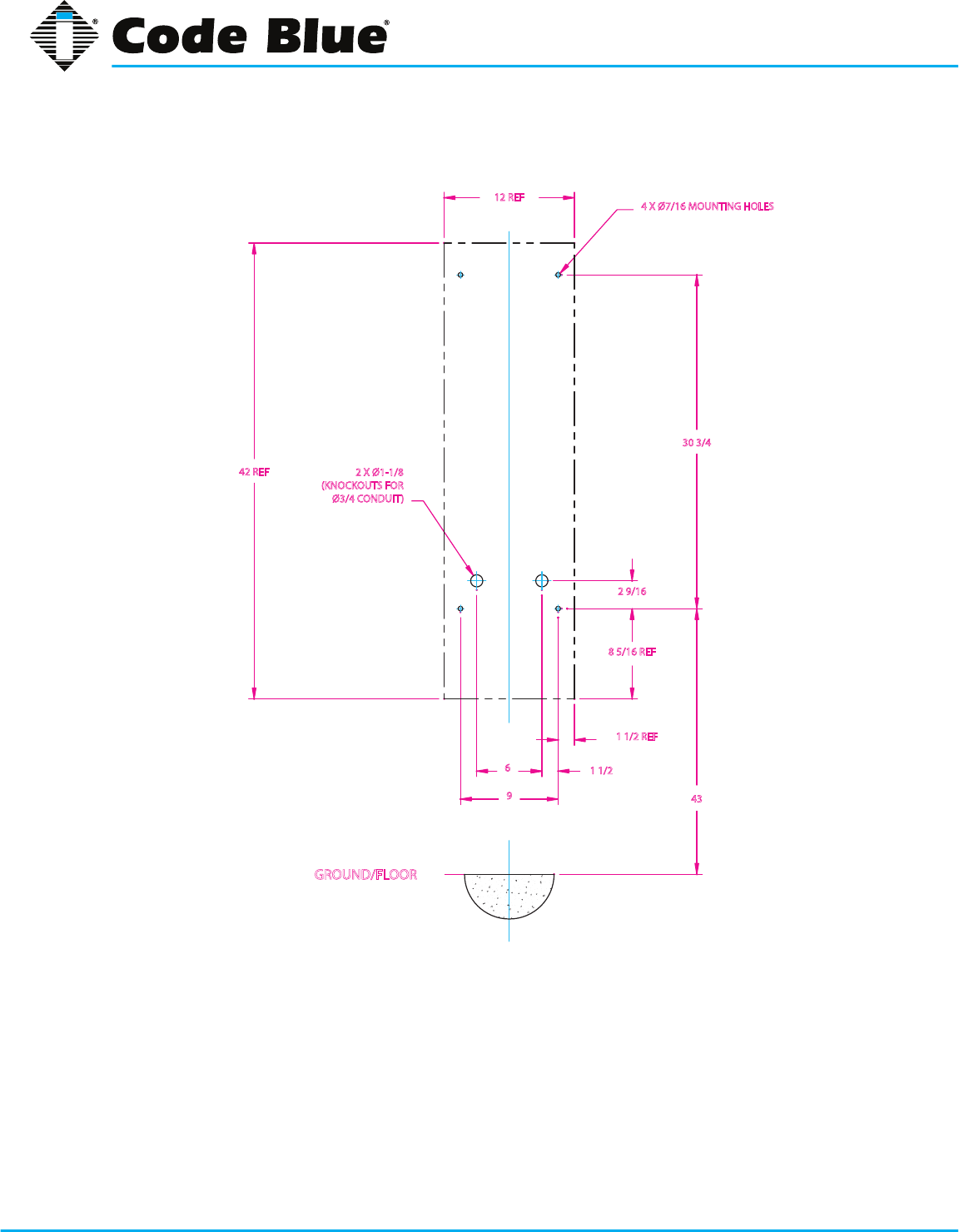

Suggested installation dimensions shown from ground to lower right mounting hole are for single

button faceplates.

• For dual button faceplate, deduct 3.25 inches.

• For keypad faceplate, deduct 4.5 inches.

• For wheelchair direct facing access only, deduct 6 inches.

DISCLAIMER: The dimensions above are intended as guidelines only. For specic installation

requirements reference your local codes.

All wiring must be installed and connected by experienced and certied personnel to meet local and

national electrical codes, and will include a service disconnect.

30 3/4

2 9/16

1 1/2

12 REF

GROUND/FLOOR

4 X Ø7/16 MOUNTING HOLES

2 X Ø1-1/8

(KNOCKOUTS FOR

Ø3/4 CONDUIT)

42 REF

8 5/16 REF

1 1/2 REF
